2000Kva Three Phase Pad Mounted Transformer Step-Down 12.47KV To 480V Meet DOE Efficiency Values With UL listed
Design capabilities
- Capacity: 45 kVA—5500 kVA
- Primary Voltage : 34.5KV,24.94KV,13.8KV,13.2KV,12.47KV,4.16KV or other
- Secondary Voltage: 690Y/400,480Y/277, 208Y/120,240Y/120 or othe
- Feed Type: Loop feed or Radial feed
- Standards: IEEE/ANSI(C57.12.34 ), CSA(C227.4 & C227.5), IEC, DOE, NEMA
Main data
| Transformer Configuration | Liquid Filled Pad Mount |
| Transformer Feed Type | Loop Feed |
| Operation | Step-Down Operation (Not Approved for Step-Up) |
| Phase | Three Phase |
| Capacity | 2 MVA (2000 KVA) |
| Vector Group | DYN1 |
| Primary Voltage | 12470V |
| Secondary Voltage | 480Y/277 |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN; Self-Cooled |
| Impedance | 5.75% |
| Primary Connection Type | Dead Front |
| Secondary Connection Type | Live Front |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 50°C |
| Ambient Operating Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Efficiency % | 99.40% |
| No Load Loss (in watts) | +/- 2,090W |
| Full Load Loss (in watts) at 100% | +/- 18,300W |
Technical drawings

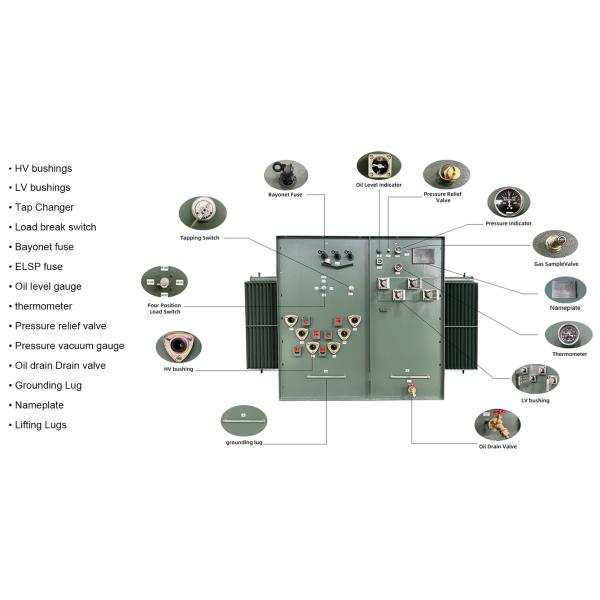

Standard Features
Optional accessories
Application
- Digital Currency Mining – Provides stable power for remote mining farms, ensuring efficient operations.
- Data Centers – Converts high-voltage power for stable electricity and backup during outages.
- Renewable Energy – Transmits solar/wind power to the grid and supports battery storage.
- Commercial Buildings – Powers lighting, HVAC, and IT systems with backup for outages.
- Transport Hubs – Ensures electricity for airports, train stations, and ports (lighting, signals, cranes).
- Agriculture – Distributes power for farm equipment, irrigation, and storage, boosting productivity.
- Industry – Reliable power for machines, automation, and cost-efficient production.
- Schools & Hospitals – Supports critical infrastructure, research, and medical equipment.
Specification
Rated Power
(KVA) | High Voltage
(KV) | Low Voltage
(V) | No-load Loss
(W) | On-load Loss
(W) | Height
(mm) | Depth
(mm) | Width
(mm) | Weight
(kg) | Weight
(Lbs) |
| 75KVA | 34.5KV
4.160KV
12.47KV
13.2KV
13.8KV
24940GrdY/14400
1247Grdy/7200
4160GrdY/2400
or others | 277V
347V
480V
600V
120/240V
208GrdY/120
415GrdY/240
480GrdY/277
600Y/347 | 180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 |
| 300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 |
| 500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 |
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 |
| 1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 |
| 1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 |
| 2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 |
| 2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 |
| 3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 |
| 3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
Why choose us
- WINLEY produces a full range of three phase pad mounted transformers with a capacity of 45kva-5500KVA and a voltage of up to 34.5KV. The products meet or even exceed the standards of DOE 2016, IEEE/ANSI, CSA, IEC, NEMA, etc.
- The three phase pad mounted transformer produced by WINLEY has obtained UL/cUL certification (Certificate Number: UL-US-2431836-0, UL-CA-2423202-0), and can apply for UL (partner authorization) according to customer requirements.
- Our products are exported to North America, South America, the Philippines and other places in large quantities. We have rich experience in design and production, professional and reliable after-sales service, and can deliver goods quickly within 7-35 days.
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
