R-Class 220℃ Insulation 2500Kva Dry Type VPI Transformer 6900V To 480V Vacuum Pressure Impregnated Transformer

Name: RClass 220 Insulation 2500Kva Dry Type VPI Transformer 6900V To 480V Vacuum Pressure Impregnated Transformer
Brand: WINLEY
Price: 500 USD

Wholesale R-Class 220℃ Insulation 2500Kva Dry Type VPI Transformer 6900V To 480V Vacuum Pressure Impregnated Transformer from china suppliers

Brand Name : WINLEY

Model Number : SG-2500KVA/6.9

Certification : ISO,CE,UL/cUL

Place of Origin : CHINA

MOQ : 1unit

Price : $500~$60000/Unit

Payment Terms : T/T

Supply Ability : 1000units/month

Delivery Time : 10-15days

Packaging Details : Plywood case

Type : Dry Type VPI Transformer

Insulation Class : Class R 220℃

Capacity : 2500KVA

Primary Voltage : 6900V

Secondary Voltage : 480Y/277

Enclosure Rating : NEMA 3R Weatherproof

Cooling : AN/AF

Efficiency Standard(s) : DOE 2016, IEEE, ANSI

Contact Now

R-Class 220℃ Insulation VPI Transformer Dry Type High-Temperature Resistant Vacuum Pressure Impregnated Transformer

WINLEY Electric’s vacuum-impregnated dry-type transformers with R-class insulation feature the NOMEX insulation system. Endowed with high heat resistance and strong overload capability, this system ensures superior performance and safety for the transformers even in prolonged high-temperature conditions.

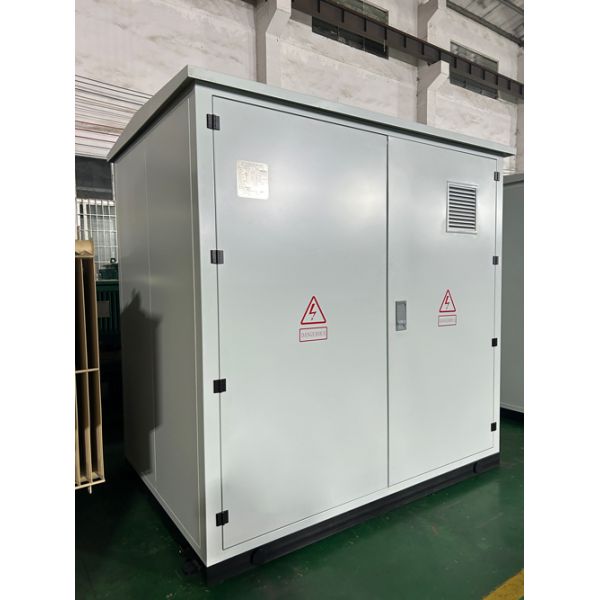

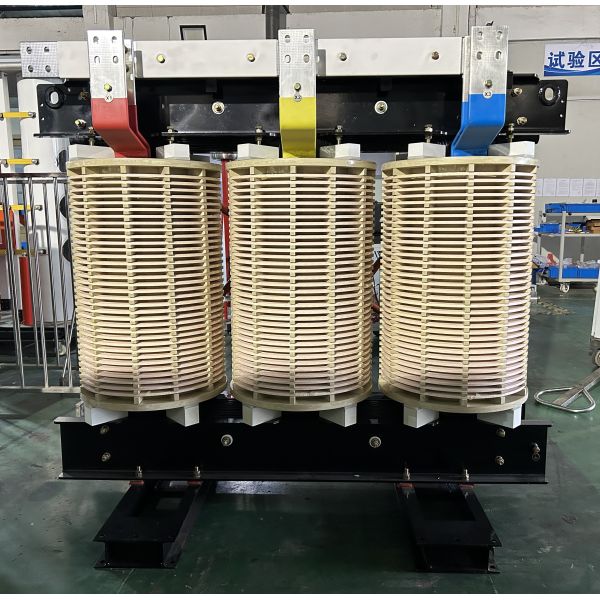

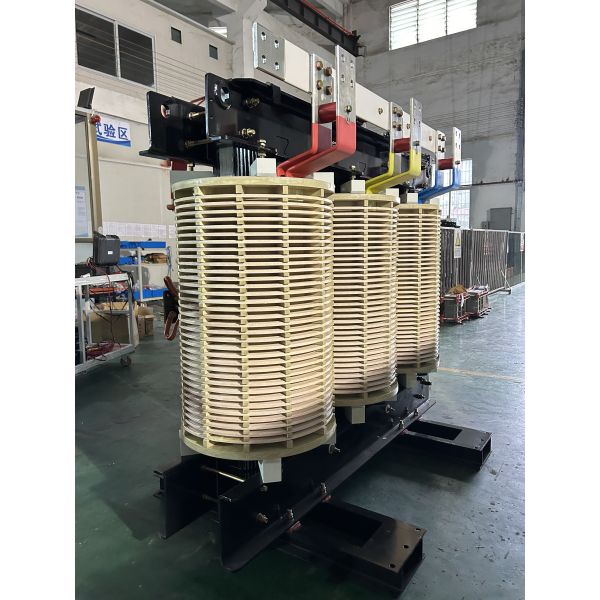

Product factory photos

R-Class 220℃ Insulation 2500Kva Dry Type VPI Transformer 6900V To 480V Vacuum Pressure Impregnated Transformer

Insulation class classification

As per NEMA class of insulation for transformer is based on the max. An R-Class insulation transformer uses very high-temperature resistant materials, allowing its windings to reach a maximum hot-spot temperature of 220°C.

Insulation Class	Maximum allowable temperature rise (°C)	environmental temperature (°C)	Maximum Temperature (°C)	Common Insulation Materials
Class A	50	40	105	Cotton, Paper, Silk, Wood
Class B	80	40	130	Mica, Fiberglass, Asbestos, etc., with suitable bonding substances
Class F	105	40	155	plus materials like synthetic enamelsB
Class H	125	40	180	Silicone elastomers, Mica, Fiberglass with high-temperature bonding substances
Class R	150	40	220	Very high-temperature resistant materials, often proprietary

Performance Characteristic

High Reliability: Engineered for continuous duty with minimal maintenance.
Thermal Stability: Class-R insulation provides superior heat resistance.
Eco-Friendly Design: Dry-type construction, low environmental impact.
Customizable: Available in a wide range of configurations and voltage classes.
Safety: Fire-retardant insulation, reduced risk of fire hazards.
Low Noise Operation: Designed for quiet performance in sensitive environments.
Excellent Mechanical Strength: Enhanced short-circuit resilience via the VPI process.
Core Material: Made from low-loss iron for superior magnetic performance.

Technical drawings

R-Class 220℃ Insulation 2500Kva Dry Type VPI Transformer 6900V To 480V Vacuum Pressure Impregnated Transformer

Application Areas:

Data Centers
Industrial automation and processing units
Renewable energy systems (solar/wind interconnection)
Power distribution in utilities,
Hospitals
Commercial buildings
Marine and mining sectors
Educational and research institutions
Infrastructure
UPS
Invertors
Telecom
Solar Inverters
Laboratories
Health Care
